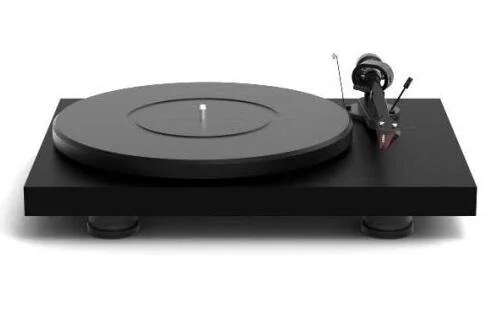

Pro-Ject Debut Carbon EVO Turntable
Pro-Ject Debut Carbon EVO Turntable
This is the new and improved step up version of the famous Debut Carbon. Motor suspension, feet, platter and motor control have all been improved. Absolutely worth the upcharge over the standard version.
Debut Carbon DC Specifications
Nominal speeds: 33/45 r.p.m.
Speed variance: 33: ±0.50% 45: ±0.60%
Wow and flutter: 33: ±0.17% 45: ±0.15%
Signal to noise: 68dB
Effective tonearm mass: 6g
Effective tonearm length: 8.6 " ( 218.5 mm)
Overhang: 18,5 mm
Power consumption: 4 W/ 0 W in Stand-By
Outboard power supply: 15V / 0 – 0.8 mA DC (set at 0.5 mA), universal power supply
Dimensions (W x H x D): 415 x 118 x 320 mm, dust cover open 415 x 365 x 405mmWeight5,6 kg
Dimensions packaging (W x H x D): 488 x 235 x 393 mm
Weight incl. packaging: 8.0kg-----
MM-Cartridge: Ortofon 2M Red
Frequency range: 20-22.000Hz
Channel separation: 22dB/1kHz
Output voltage: 5.5mV
Recommended load impedance: 47kohms
Amplifier connection: MM-input
Compliance/stylus type: 20µm/mN – elliptical
Recommended tracking force: 17.5mNWeight7.2g
