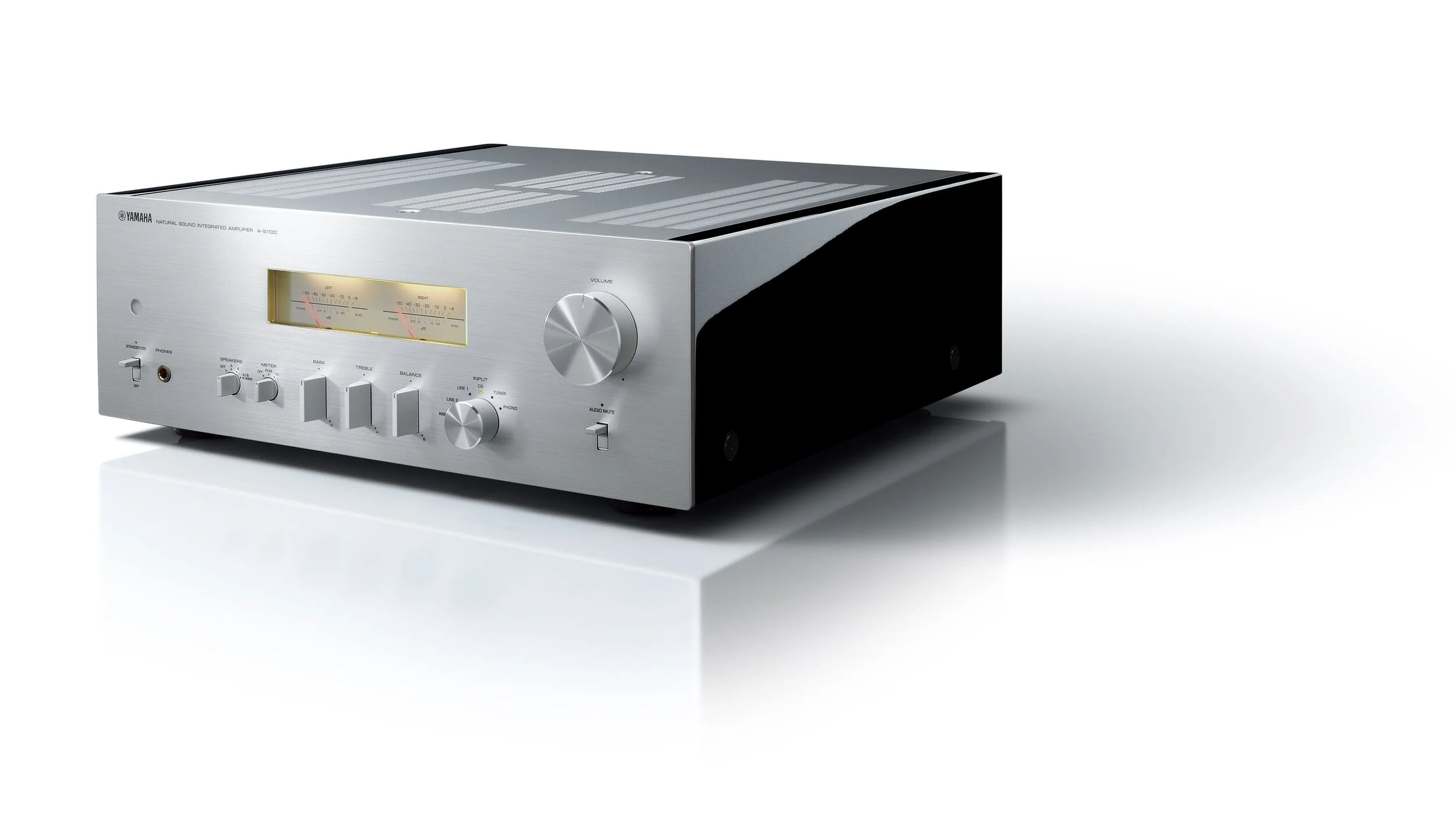

Yamaha A-S1200 Integrated Amplifier

Yamaha AS1200 Front.jpg
Yamaha AS1200 Rear.jpg
Yamaha AS1200 Top off.jpg
Yamaha AS1200 Side.jpg
Yamaha AS1200 Side.jpeg
Yamaha AS1200 Front.jpg
Yamaha AS1200 Rear.jpg
Yamaha AS1200 Top off.jpg
Yamaha AS1200 Side.jpg
Yamaha AS1200 Side.jpeg

Yamaha A-S1200 Integrated Amplifier

CA$3,999.99

This amplifier was built to last a lifetime, the build quality of this piece is exemplary. Sound quality is very warm and smooth, easy to live with on a long term basis. Enough power on tap to drive most speakers with ease. Gorgeous in both appearance and sound quality.

A-S1200 Specifications

  • Rated Output Power[20 Hz-20 kHz, 0.07% THD]: 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms)

  • High Dynamic Power/Channel (8/6/4/2 ohms): 105/135/190/220W

  • Damping Factor: ≧ 250 (1 kHz, 8 ohms)

  • Frequency Response: +0 / -3 dB (5Hz-100kHz) , +0 / -0.3 dB (20 Hz-20 kHz)

  • RIAA Equalization Deviation:+/-0.5 dB (PHONO (MM/MC))

  • Total Harmonic Distortion: (20Hz to 20kHz): PHONO MC→LINE2 OUT: 0.02% (1.2 Vrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms)

  • Signal-to-Noise Ratio: PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB

  • Input Sensitivity: [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms

  • Transformer: 625VA (Toroidal)

  • Dimensions (W x H x D): 17-1/8" x 6-1/8" x 18-1/4"

  • Weight: 48.5 lbs
